Construction connectors in fibers and special steels
Our structural consolidation connectors combine special steels and mineral fibers for reliable anchoring to masonry and concrete. Ideal for restoration work, seismic improvement and fixing of FRP reinforcements.
- High anchoring capacity and load transfer
- Resistance to corrosion (AISI 316 stainless steel) and surface protection (galvanising)
- Compatibility with mortars and epoxy resins
- Quick installation with dedicated accessories
- Custom-made solutions developed with ISO quality system 9001:2015
Why choose our connectors:

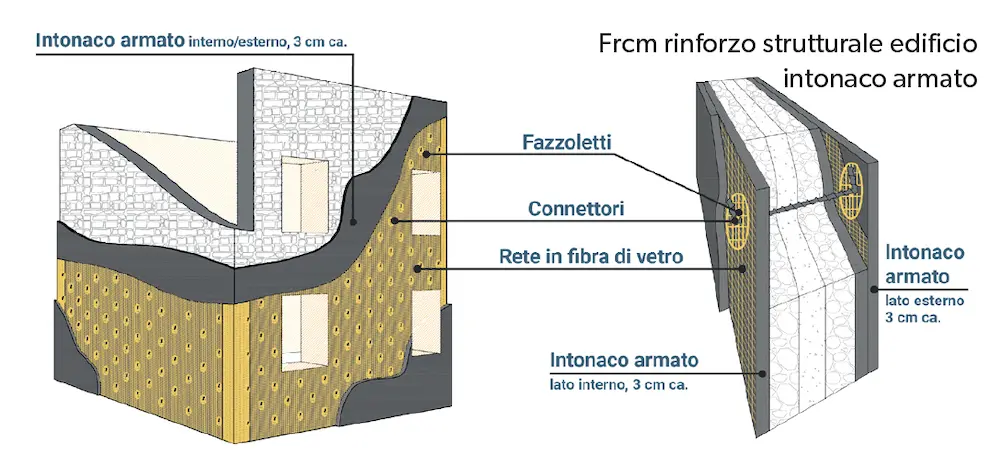

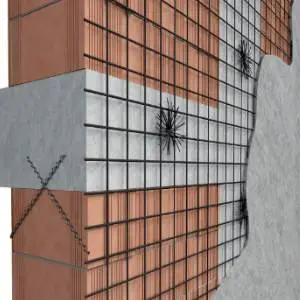

- Designed to integrate fiber reinforcements (FRP) and masonry interventions

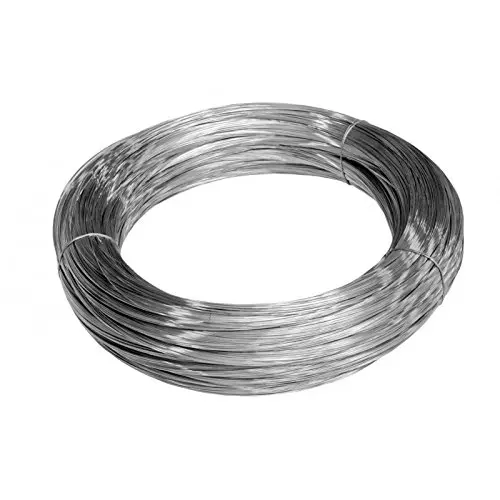

- Complete range: in AISI 316 stainless steel, galvanized steel, aramid, basalt, carbon, E glass and AR glass
- Technical support and assistance on site
- Contribution to LEED credits and membership of the GREENiTOP® green community
- CE certificates n. 1305-CPR-1576 * ETA no. 19/0361 * EAD n. 331668-00-0601
Materials and variations
Choose the type most suitable for your intervention: steels for maximum mechanical performance or mineral fibers for lightness and resistance to corrosion.
Performance and durability
Connectors designed to transfer tensile and shear loads with high reliability.
- Anchoring capacity: optimized according to diameter, length and mortar/injection resin
- Ductility and post-cracking behavior to improve seismic response
- Corrosion resistance: AISI 316 stainless steel and FRP (basalt/glass) immune to rust
- Compatibility: thixotropic mortar or epoxy resin systems, reinforcement mesh and fabrics
- Durability: extended useful life in humid or aggressive environments
Fields of application

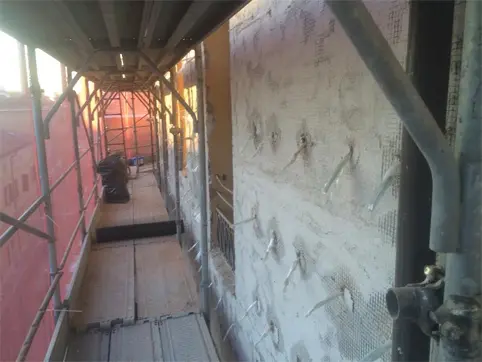

Installation
General guidelines (indicative, do not replace the design):
Accessories: epoxy resins or thixotropic mortars, bushes and steel washers, mesh and reinforcement fabrics.
- Drilling of the support according to the diameter and depth of the project
- Cleaning the hole and injecting mortar/adhesive
- Inserting the connector and placing it in position
- Finishing with accessories (sleeves, washers, screens) and surface covering
Accessories: epoxy resins or thixotropic mortars, bushes and steel washers, mesh and reinforcement fabrics.
For application support or standard specifications, our technical office is available.
Regulations and certifications
References for design and quality:
- FRP guidelines for structural reinforcement (CNR, sector technical references)
- Performance concepts consistent with Eurocodes (e.g. EN 1998 for seismic action)
- Company quality system compliant with EN UNI ISO 9001:2015
- Products that contribute to LEED credits for sustainable buildings
- Commitment to sustainability: GREENiTOP® green community
Download
Download documentation or request updated files. If necessary, the team supports the choice of the connector and the definition of the specifications.
Documents available on request:
- Technical data sheets for materials and diameters
- Installation instructions
- Standard specifications for masonry and concrete
Request a quote
For a quick offer indicate: quantities and diameters, required material (stainless/galvanized/basalt/glass), lengths, application context (masonry or concrete) and desired delivery times.
Do you already have specifications or drawings? Upload them in the form to speed up the technical evaluation.
